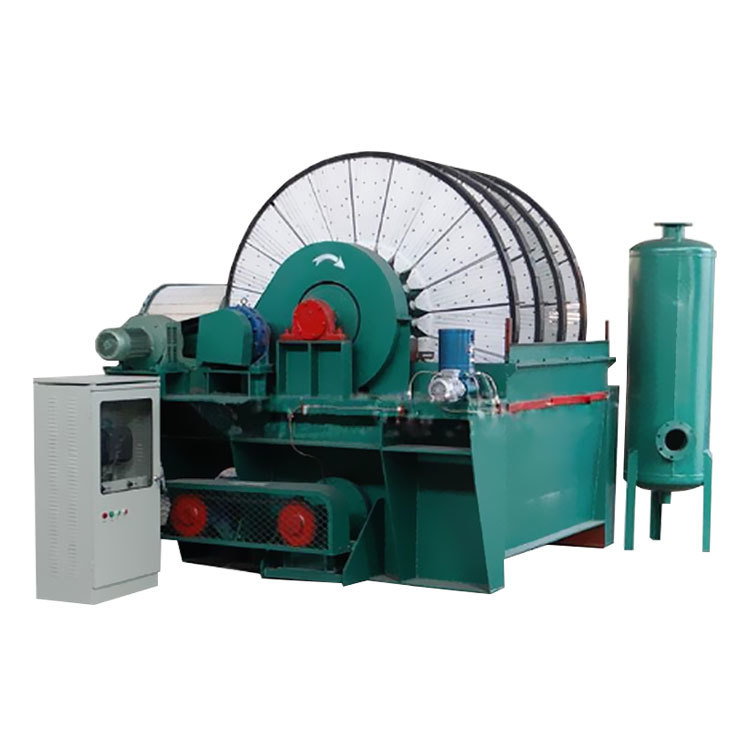

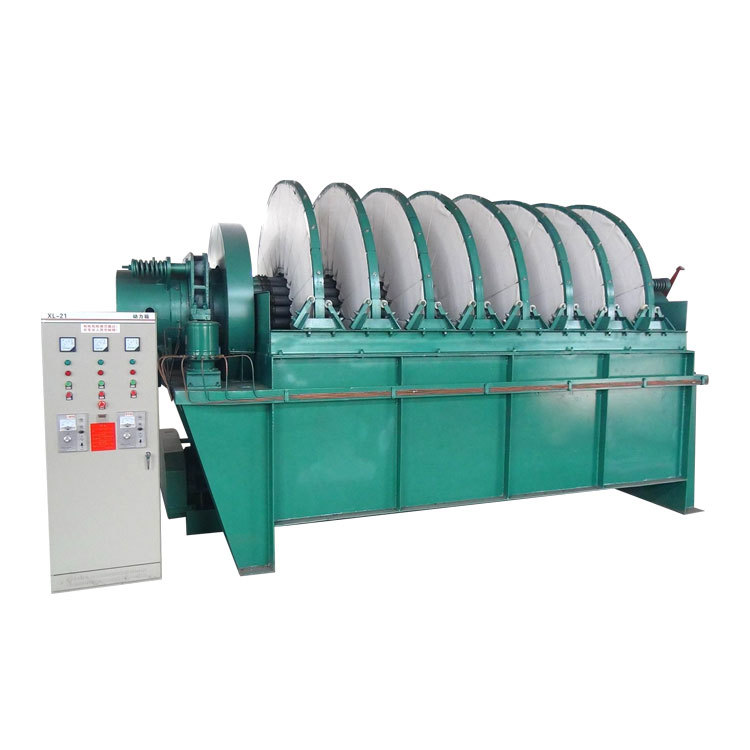

GPT disc vacuum filter

Working principle

Disc vacuum filter is a kind of solid-liquid separation equipment. The filter disc is driven by a speed-regulating motor through a reducer and open gear transmission, so that it rotates at a certain speed in a tank filled with ore pulp. When the filter disc When a filter fan of the disc is in the filter adsorption area, a pressure difference is formed on both sides of the filter medium by means of the vacuum pump, so that the solid material is adsorbed on the filter medium (filter cloth) and forms a filter cake, while the filtrate passes through the filtrate tube. And discharge from the distribution head. When the filter fan breaks away from the slurry level and enters the dehydration zone, the filter cake is continuously separated from the filter cake by the suction force of the vacuum, and is further discharged from the filtrate pipe and distribution head, so that the filter cake is dried. After entering the unloading area, the filter cake is unloaded from the filter plate by back blowing and scraper, falls into the discharge trough, and is transported away by the ore-collecting belt conveyor. The whole operation process is carried out continuously.

Product advantages

1. Large filtering area and large processing capacity;
2. Sufficient dehydration;
3. Significant economic effect;
4. Small footprint, easy manufacture, strong adsorption capacity, etc.;
5. It is not necessary to set up a stirring device;
6. Fast replacement of filter cloth;
7. If the filter slurry tank is divided into several compartments, two distribution heads can be set on a single machine to process two different suspensions at the same time.

Product parameters

Product main features

1. The dewatering holes of the fan-shaped filter plate are evenly distributed, the porosity is reasonable, the ribs are large in size, and are made of high-strength engineering plastics, and the service life is increased by 1-1.5 times.
2. The filter area of the filtrate tube is large, and the area of the abdominal cavity of the distribution head is large, which improves the pumping rate and the effect of filtrate discharge.
3. The wear-resistant nylon monofilament or double-layer multifilament filter cloth improves the dehydration rate and is not easy to be blocked, prolonging the service life.
4. Multi-point dry oil pump centralized automatic lubrication.
5. The filter cloth automatic cleaning device maintains its good dehydration effect.
6. Horizontal forced variable speed stirring, the shaft end is triple sealed with rubber and graphite packing and water pressure difference to ensure no slurry leakage.
7. The main drive is stepless variable speed, adjusted according to the concentration and flow of the material (AC speed regulating motor or frequency converter), in order to achieve the ideal working effect.
8. Each plate is composed of 20 filter fan plates, which strengthens the control of the filtration process and makes the cake thickness uniform.
9. The friction plate is made of boron cast iron, a special wear-resistant material, which combines rigidity and softness, has good sealing effect and long service life.
10. The filtrate pipe is a high-strength wear-resistant ceramic composite steel pipe, which increases the service life by more than 10 times.
11. The upper and lower flanges are removed from the interface between the filtrate pipe and the filter fan, and the mold positioning is used for direct welding, which reduces 90% of possible air leakage points.

Product Notes

1. Although the disc vacuum filter is a filter device that works continuously, its work is intermittent for each filter plate, and it goes through three processes of filtering, drying and unloading.
2. The time that the filter plate is in each working area is not only related to the number of revolutions of the filter, but also related to the angle occupied by each area, which can be adjusted through the distribution head.
3. When filtering, the filtration time experienced by each point on the fan-shaped filter plate is different, and it depends on the radial position of the point. The filtration time experienced by point n on the filter plate is the shortest, and point m is the longest. Increasing the number of filter plates on each disc can shorten the time gap between two points, thereby utilizing the area of the filter plates more reasonably.
4. Since there are non-working gaps between each fan-shaped filter plate, in order to reduce these non-working areas on the back plate, the number of filter plates should not be too large. On each disk, the most reasonable number of fan-shaped filter plates is about 10 pieces, and generally can be selected in the range of 8-16 pieces.
